Seco-Larm E-941SA-80Q 80-lb Electromagnetic Lock

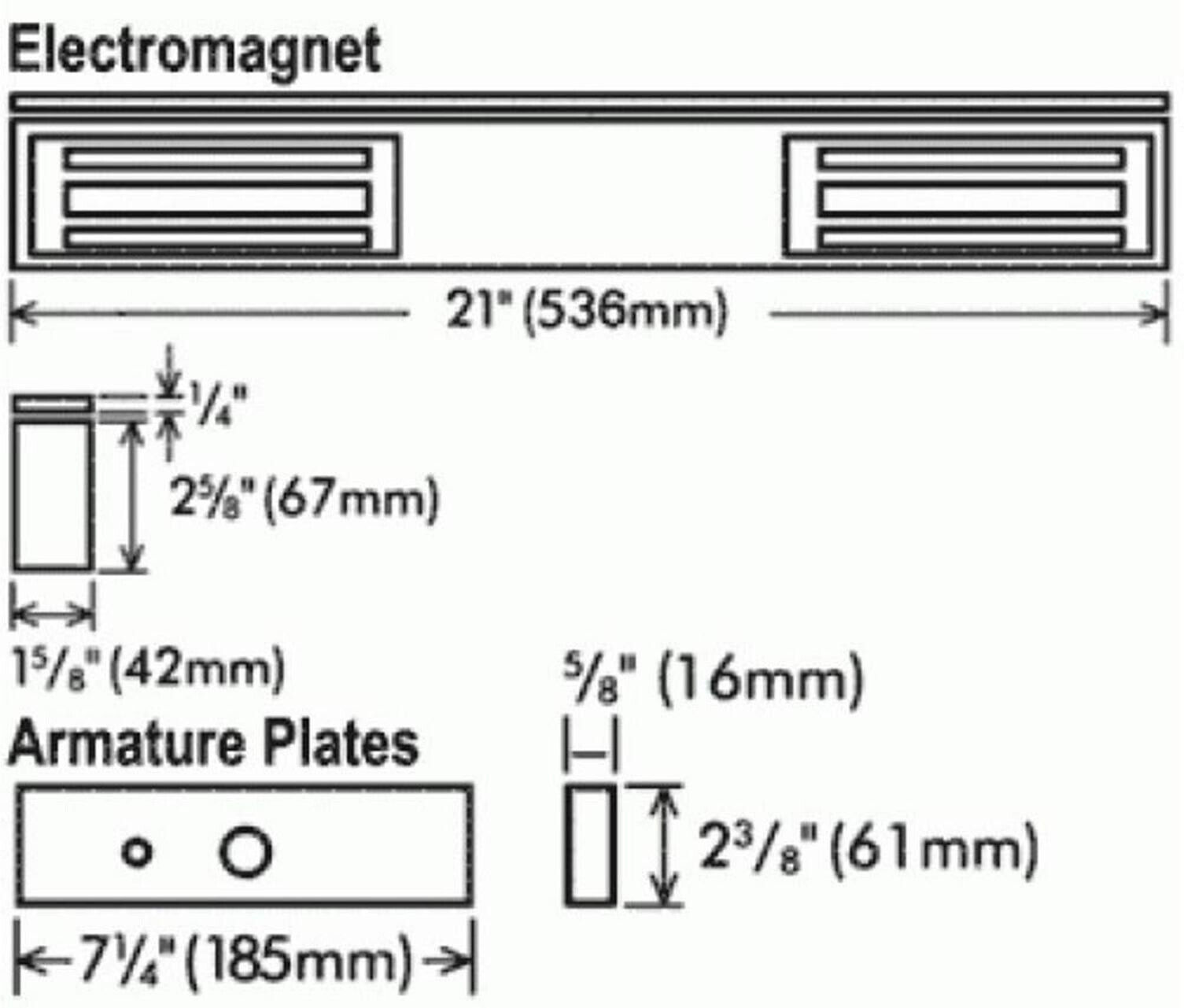

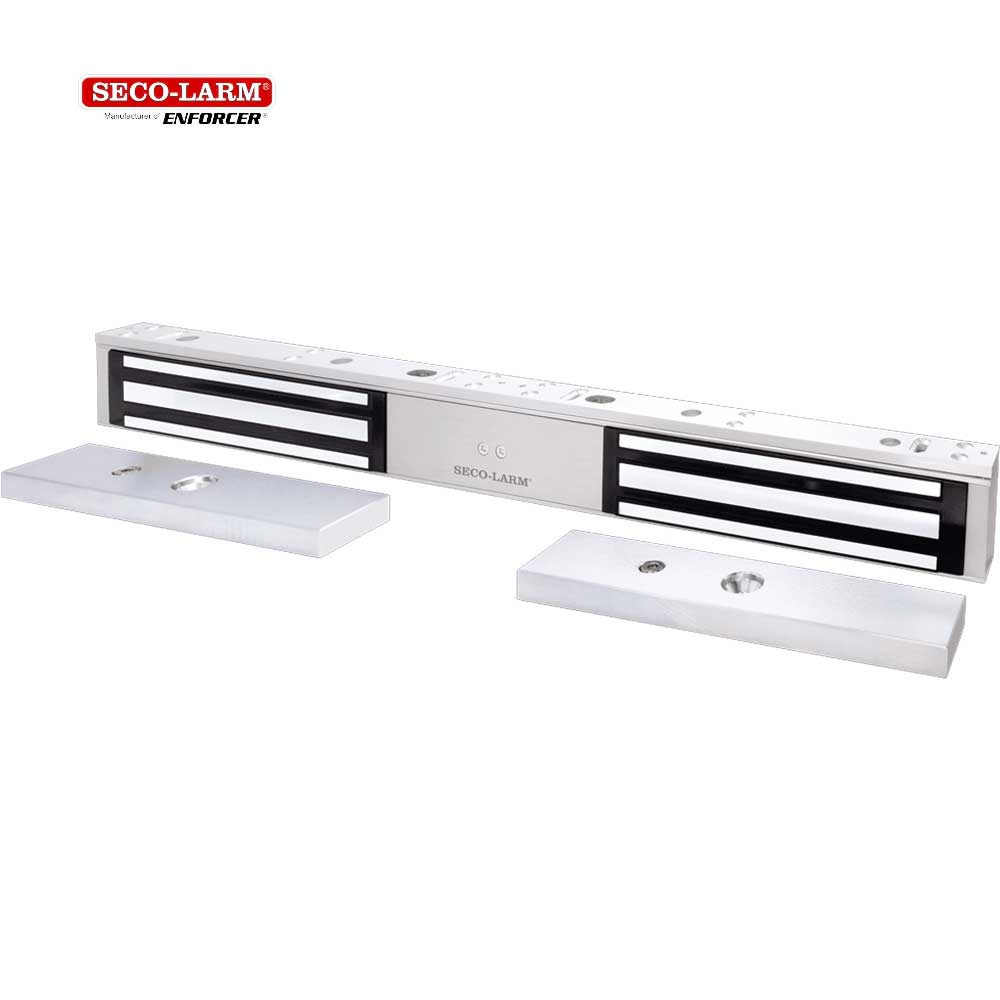

Seco-Larm E-941DB-600PQ | 600-lb Electromagnetic Lock, Doubl Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism Key Features: - 1200-lb (545kg) Holding force - No residual magnetism - MOV Surge protection - Built-in status LED shows locked/unlocked status - Built-in bond sensor with 3A@12VDC dry relay output for monitoring door status - Anodized aluminum housing with black finish - Adjustable mounting bracket - Complete mounting hardware for typical installations - Additional brackets available for easy mounting or atypical situations - Detachable faceplate for easy access to wiring - 12/24VDC Selectable Specifications: - Holding force: 1,200-lb (545kg) - Operating voltage: 12/24 VDC (selectable) - Current draw: 500mA@12VDC, 270mA@24VDC - Destructive attack: Level I - Line security: Level I - Standby power: Level I - Endurance: Level IV - Bond Sensor: Yes - Status LED: Yes - Magnet Dimensions: 10., 5 x 2-., 62 x 1., 56 inches (267 x 67 x 67 mm) - Armature Dimensions: 7., 25 x 2., 37 x 0., 62 inches (185 x 61 x 16 mm) - Weight: 11 pounds Secures a door with 1,200 pounds (272kg) of holding force Seco-Larm E-941SB-1K2PQ Electromagnetic Lock, 1200-lb Holding Force, Bond Sensor, Status LED, UL Listed, Anodized Aluminum Housing with Black Finish, Adjustable Mounting Bracket, 12/24VDC Selectable The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. Cerradura electromagnética de 600 lb, homologada UL - USA Inc The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Reliable security with MOV surge protection Electro Seco-Larm E-941SA-80Q 80-lb Magnetic Lock
